Accepting CAE analysis & CAD drawing work
Optimize product and equipment design through virtual verification using CAE, and visualize phenomena in the product design and manufacturing processes, accelerating the process of considering countermeasures

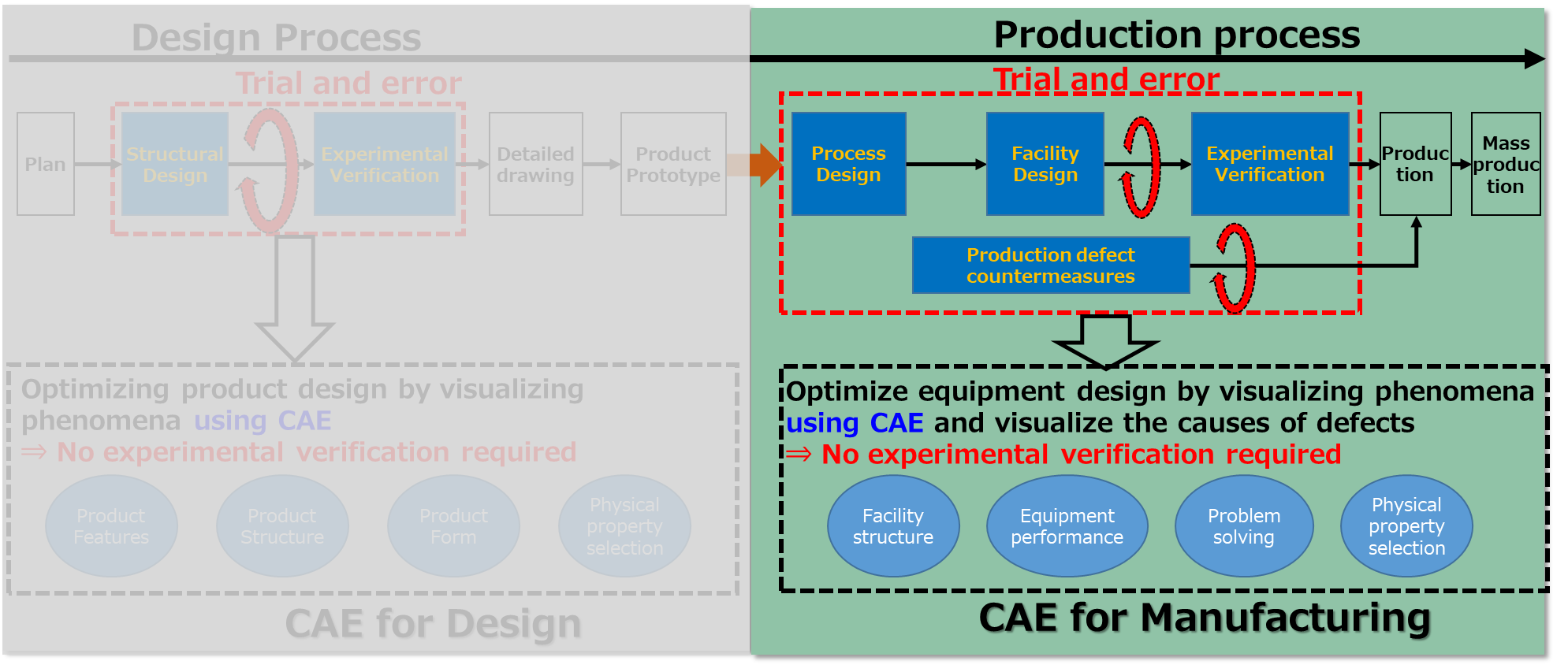

・ Product molding procedure
By utilizing CAE, we have achieved time and cost savings in product and equipment design and defect countermeasures.

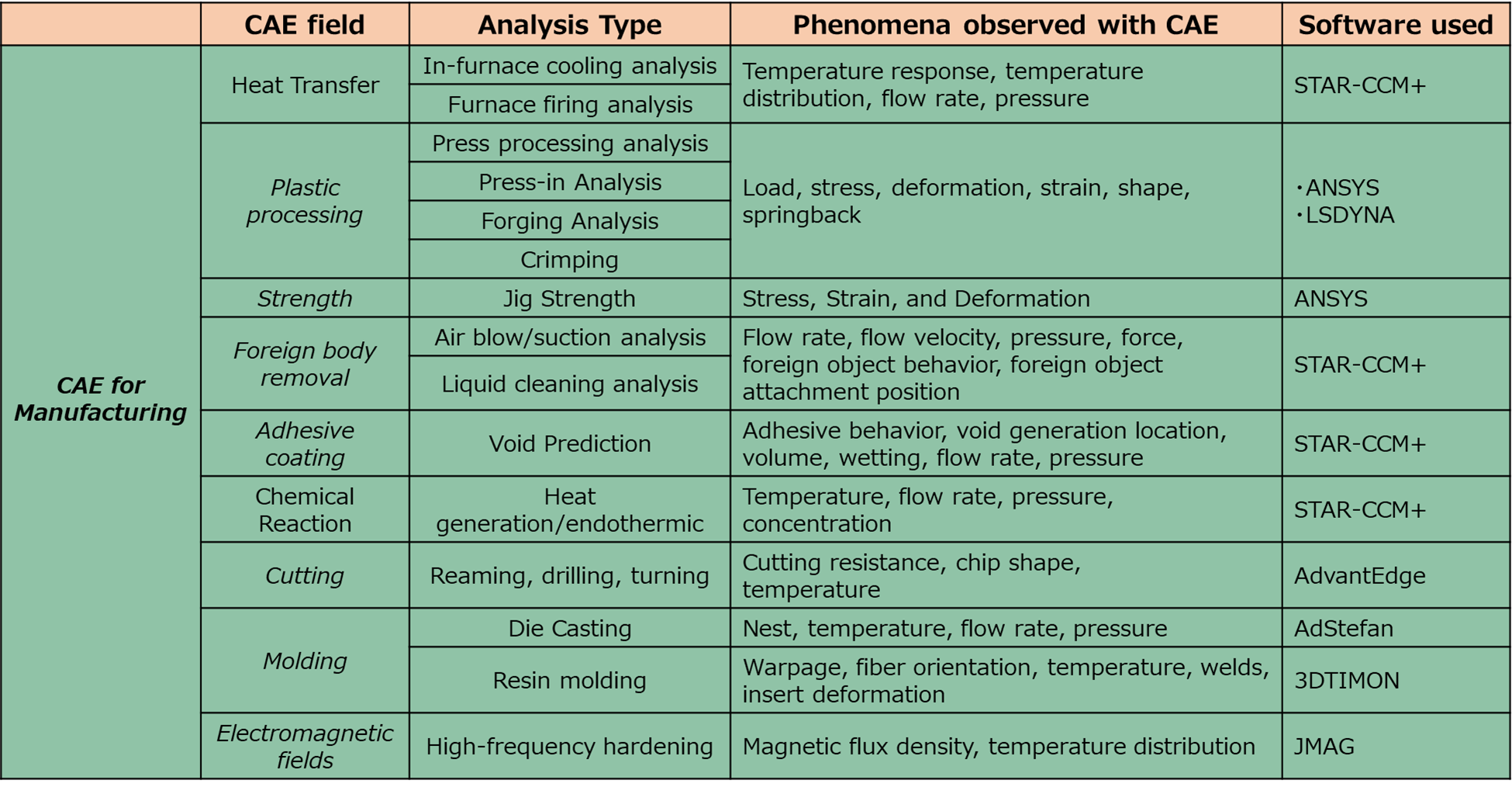

・List of phenomena observed with CAE
CAE Example
Press processing
April 9, 2025
No Comments
Use press analysis to predict press load and check if it exceeds the limit. Also check if the forming shape is achieved and improve the punch.
Cooling Simulation
April 9, 2025
No Comments
Understand the cooling water flow and check the cooling effect according to the cooling arrangement
Diffusion Simulation
April 9, 2025
No Comments
Diffusion simulation: visualization of slurry behavior based on blade shape and rotation speed
